Optium K series – Rotor Ø750

Accueil / Manure spreader / Optium K series – Rotor Ø750

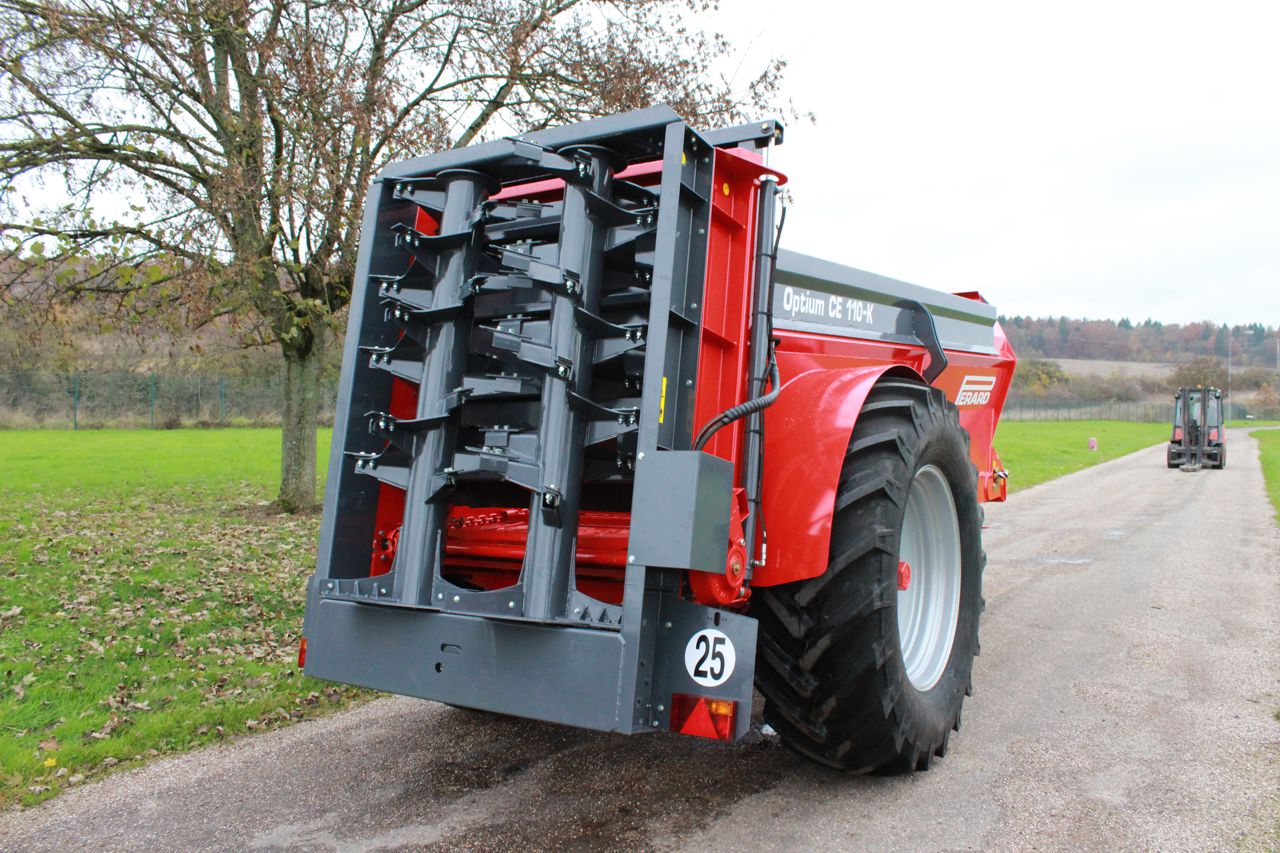

Optium K series manure spreaders are fitted with double spiral distributor rotors with a diameter of 750 mm. This unique and patented system achieves a very large working width and exceptional fineness. Therefore, the distribution rotors can spread all types of manure: cattle, droppings, compost, sugar beet lime, etc. They are designed for all users who are looking for superior work quality over a large width.

The K series is characterised by low machines with a low loading height, making them ideal for mountainous areas.

CharacteristicsCE 90kCE 110kCE 130k
Capacity9,00 m³11,00 m³13,00 m³
Inside length4,75 m4,75 m4,75 m
Height of sides0,85 m1,22 m1,38 m
Gross vehicle weight (25 kph)11,60 t12,40 t15,00 t
Double spiral distributor rotorsØ 750 mmØ 750 mmØ 750 mm
Loading height1,85 m2,22 m2,38 m
Axlessquare of 90square of 90square of 100
Tyres (original)18,4 x3018,4 x3418,4 x34
Chains2 x 14 mm2 x 14 mm2 x 14 mm
